MASTER FRONT LIVING

Complete luxury, exceptional living and the freedom to stay anywhere.

OVERVIEW

ELITE EQUESTRIAN TRAVEL. UNCOMPROMISED COMFORT.

Designed for serious equestrians who spend more time on the road, the Master Living range combines premium horse transport with refined living comforts. Built for extended stays away from home, it delivers an exceptional experience for both horse and rider.

SureGrip Sealed Rubber Floor & Tailgate
Rocker Roller Suspension
Kiln-dried Hard Wood Timber Flooring
Flexi-Travel Dividers
Internal LED Strip Lighting
Easylift Gas Strut Tailgate Operation
Australian DuraGal Steel

Starting from $87,000*

Spacious Horse Area

A spacious horse area provides comfort, safety, and freedom of movement during every journey.

Premium Storage

Premium storage keeps essential equipment secure, organised, and easily accessible.

Advanced Ventilation

Advanced ventilation maintains a fresh, comfortable environment for horses in all conditions.

Additional Options

Additional options let you tailor the setup to suit your horses, equipment, and travel needs.

Overall Dimensions

Length: 6555mm
Width: 2130mm
Height: 2880mm

Specifications

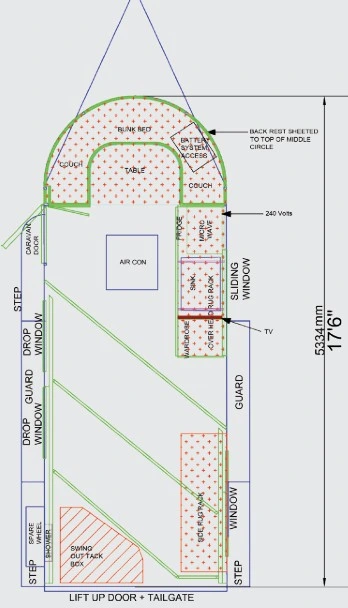

Internal Dimensions

Length: 5334mm
Width: 1980mm
Height: 2260mm

Weights

GTM: 3500kg
Tare: 2250kg

Wheel Size

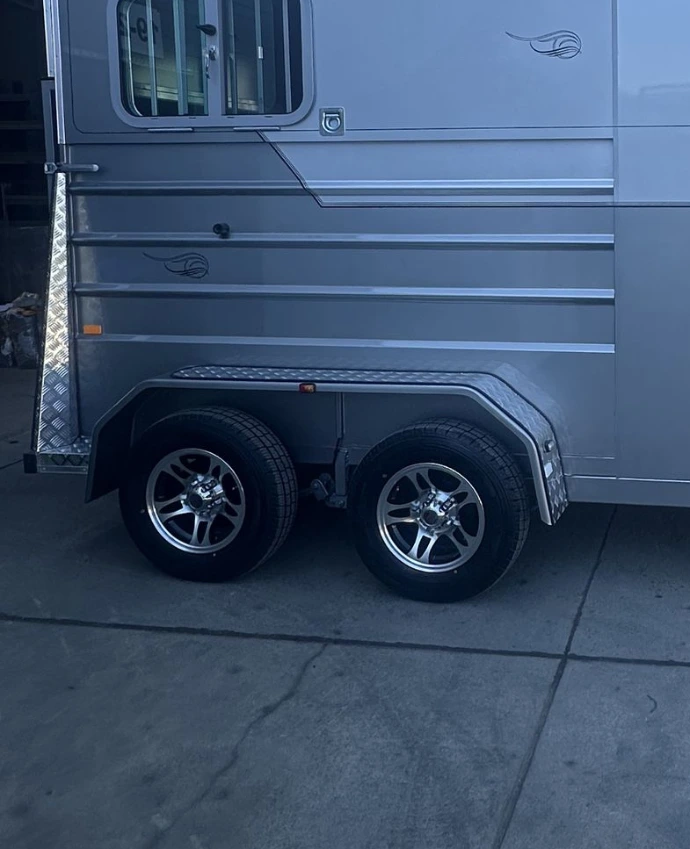

16" White Sunraiser Wheels with 195/65/R16C Light Truck Tyres

Bay Sizes

Length: 2330mm
Width: 730mm

Axles & Suspension

12" Electric Braked
65mm Drop Axles
8 Leaf Rocker Roller Suspension

DOWNLOAD BROCHURE

*All dimensions and weights listed are approximate only and may vary depending on selected options, variations and individual build requirements.

Standard Inclusions

Every float comes equipped with a refined selection of premium features, designed for comfort, safety and confidence on every journey.

Standard - Inside

Internal Dividing Wall between horses & front area, which has a personal access door hinged into front
2x pop-up roof vents

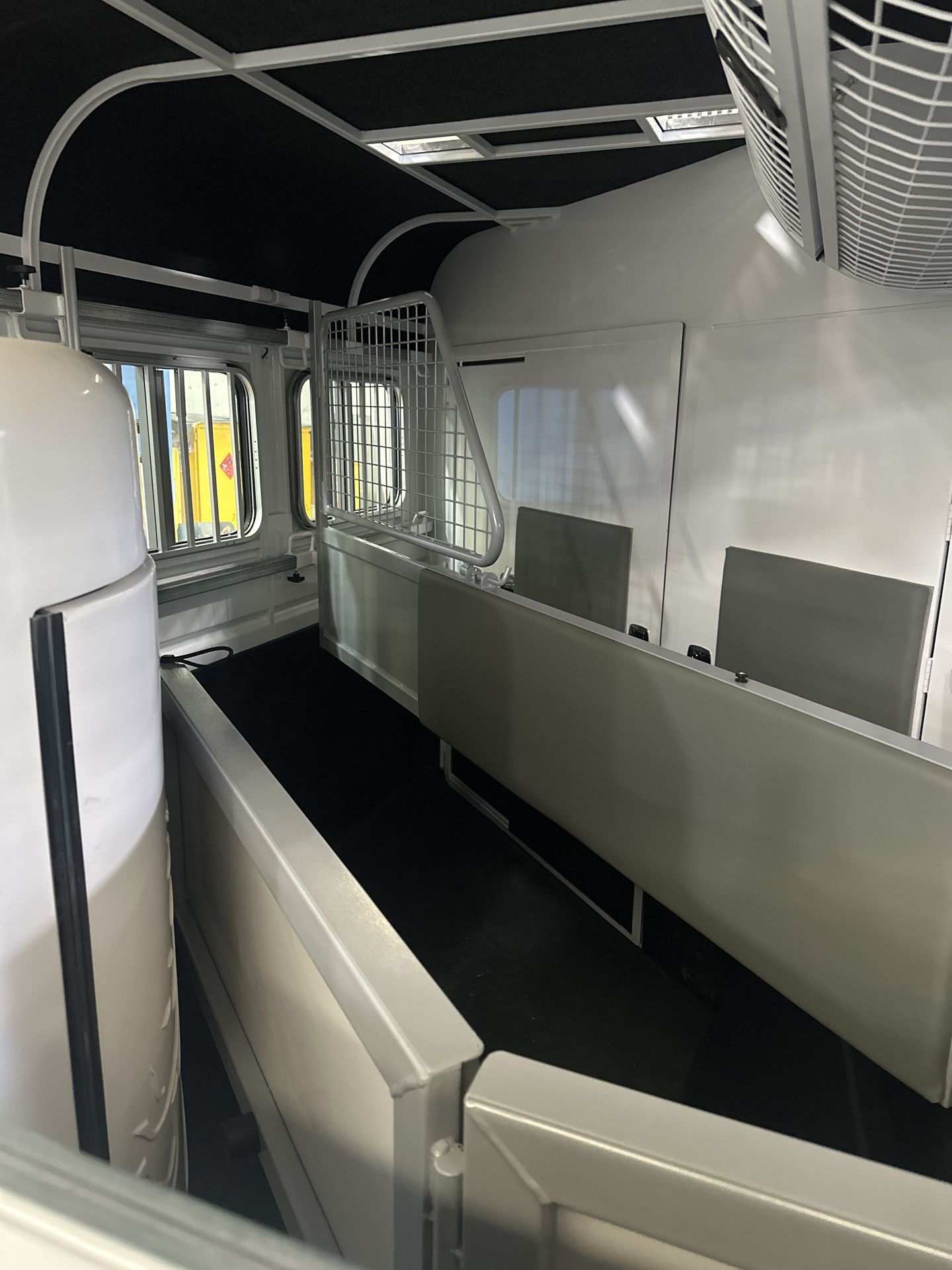

Flexi-Travel Adjustable Divider System
Padded & Removable Dividers
Side Walls lined with Rubber
Rump Rug Rack - 1500mm long, mesh, lockable, gas strut assisted door
Angle Load Swing-Away Head Dividers between each bay
Internal LED Strip lighting
SureGrip Sealed Rubber on the Floor & Tailgate
Australian DuraGal Steel
Window Coverings

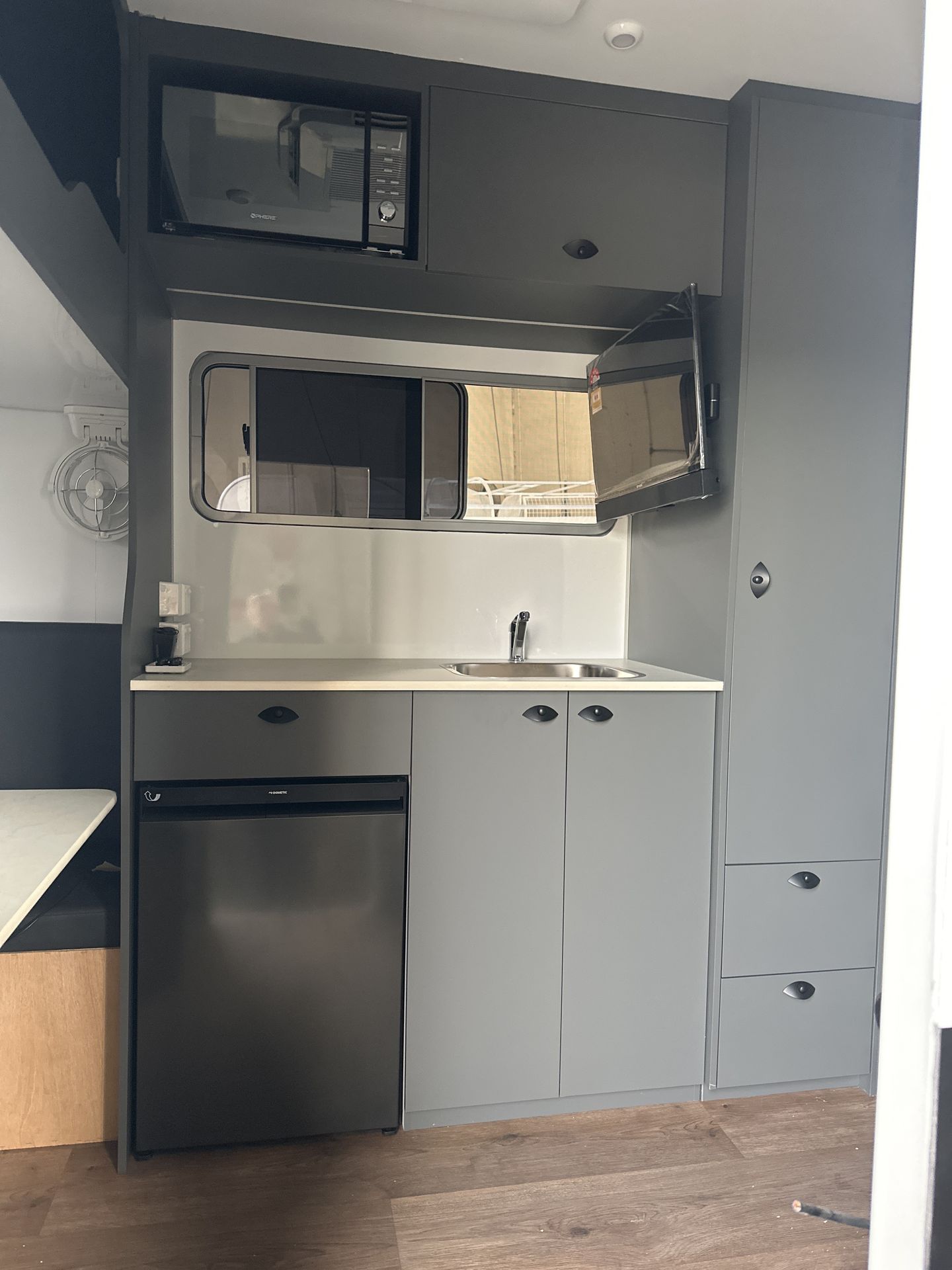

12V/240V Fridge
Lined walls and ceiling in living area
12V Ceiling down lights
Sink - cold tap only

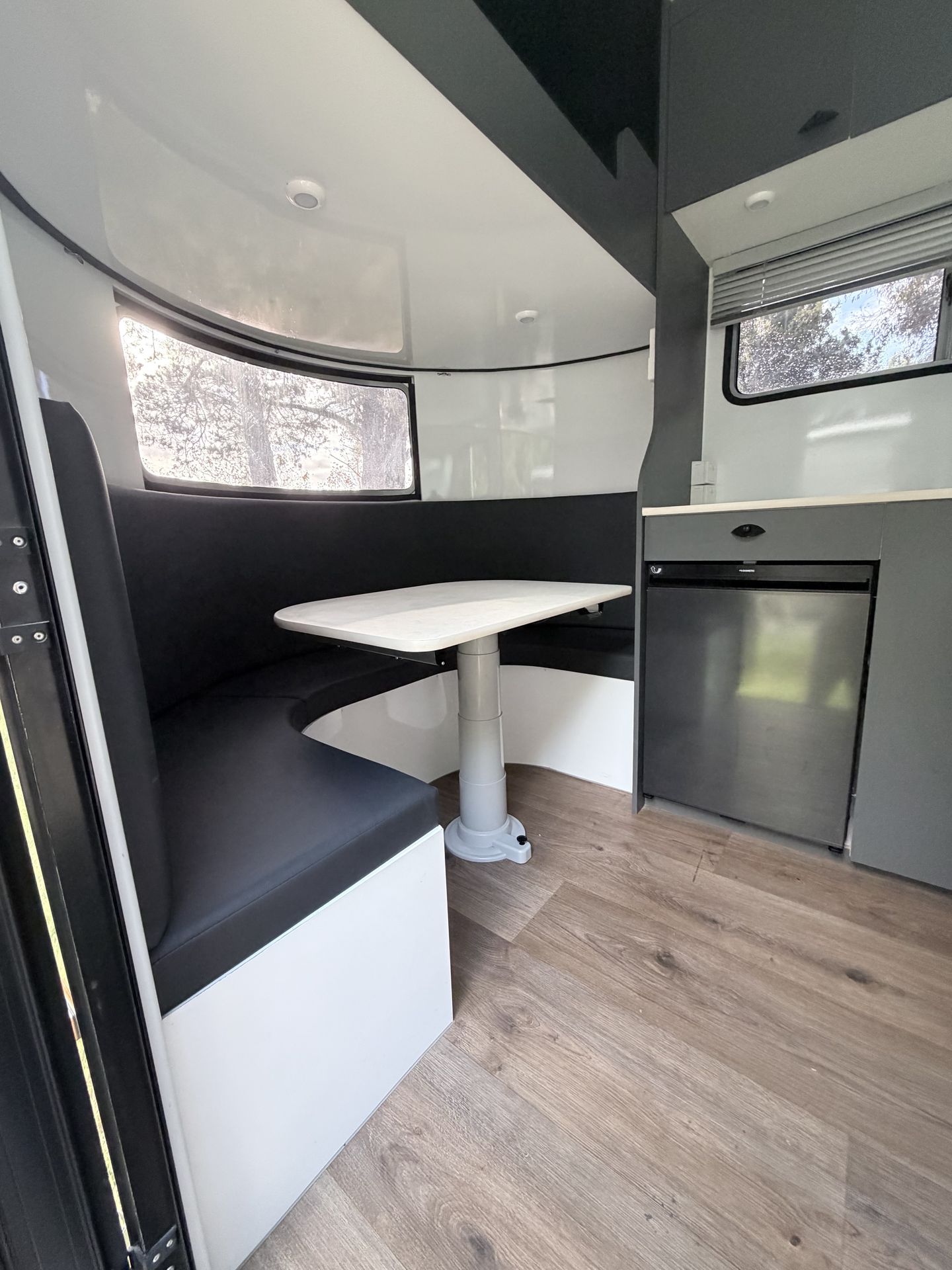

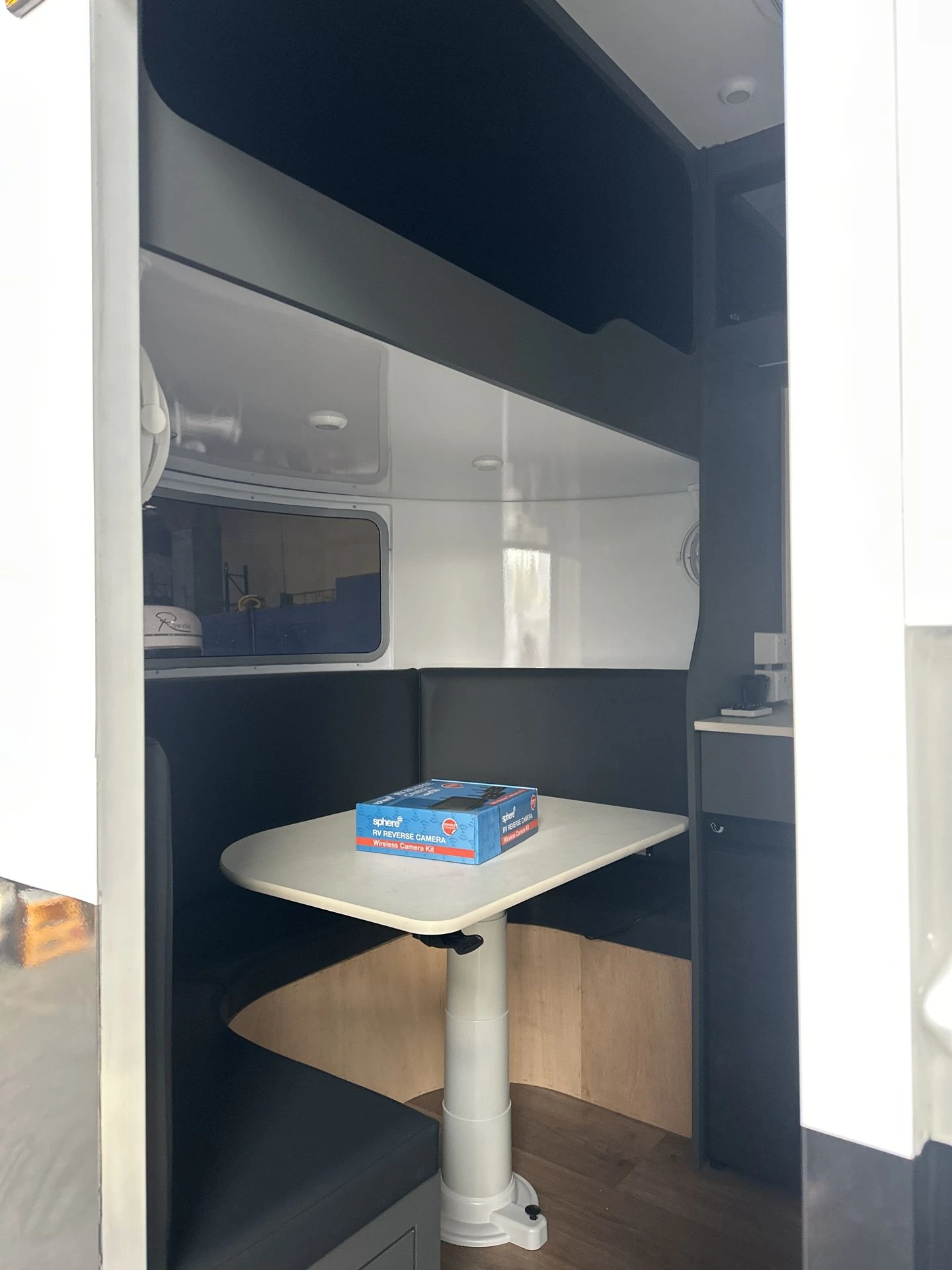

Front curved lounge - coverts to a bed

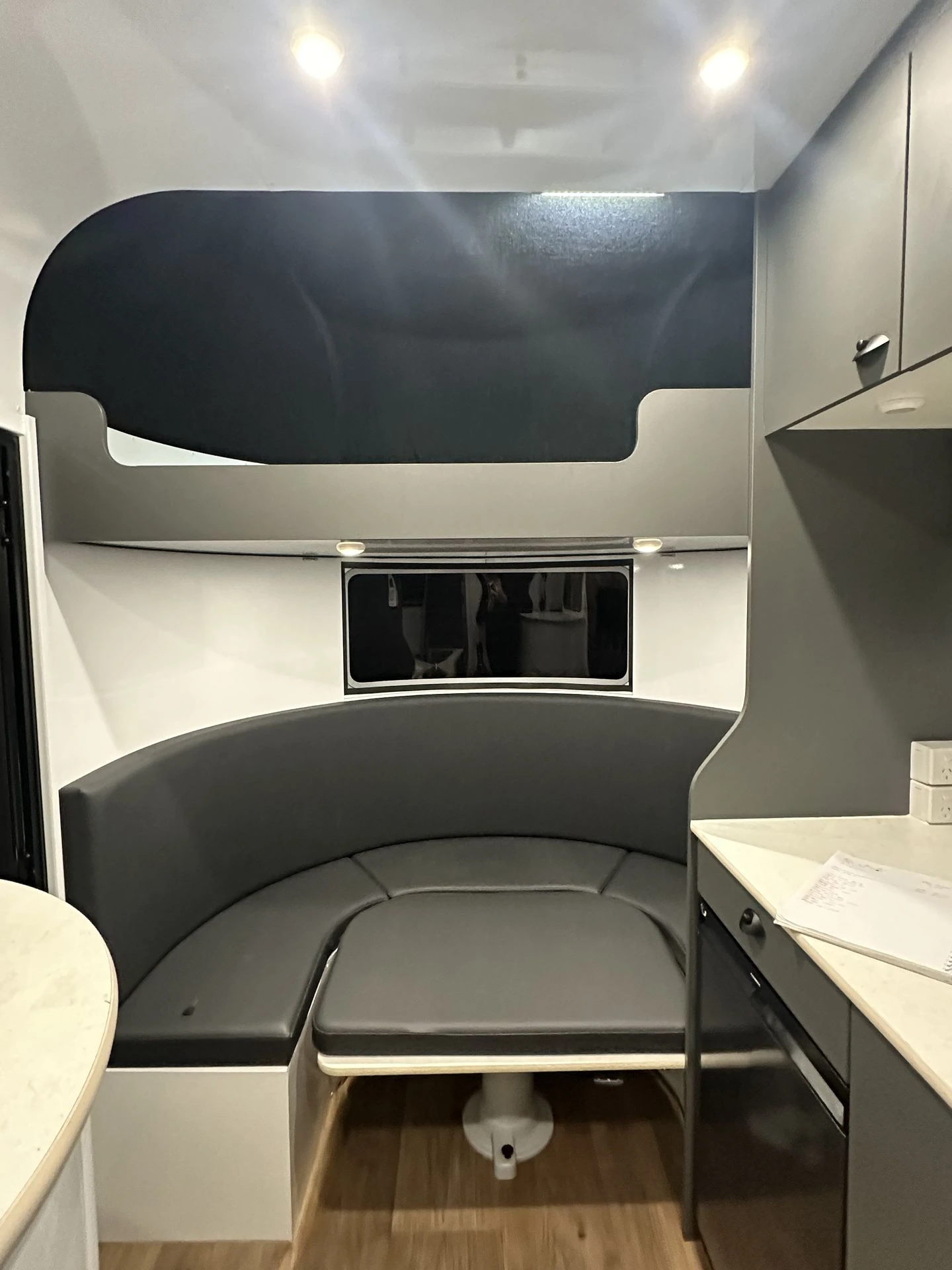

Overhead Bunk Bed

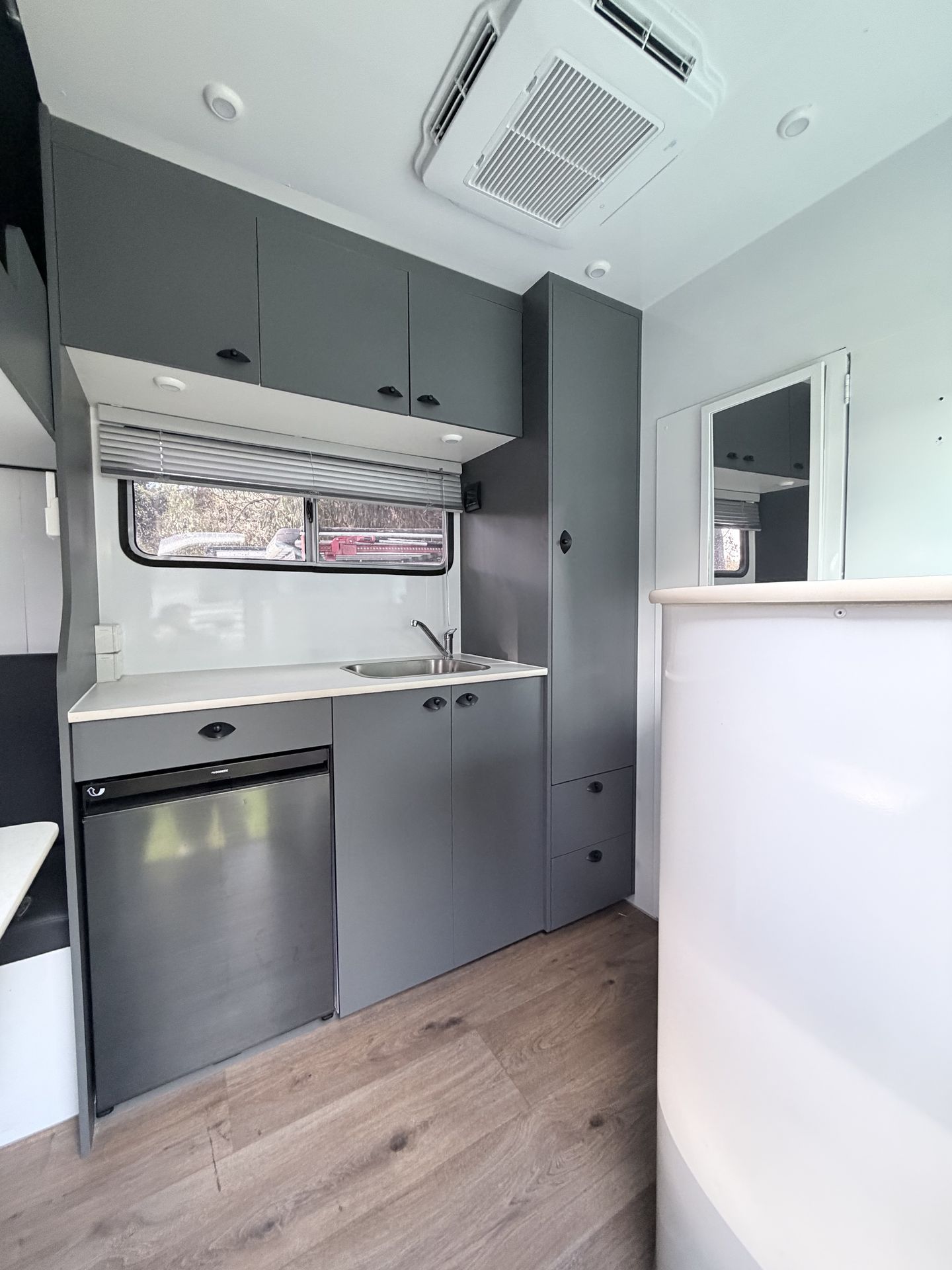

Timber Cabinetry Package
Lino flooring in living area
240V Microwave
12V AGM Battery System
Fiberglass Swing Out Tack Box

Standard - Outside

White Automotive Paint & Automotive Sealant for washing inside/out, graphics front, side & tailgate
Tinted Curved Front Window
1x RHS Tinted Sliding Side Window with Flyscreen
2x LHS Drop Down Window with Flyscreen
1x Living Window
1x RHS Flush Mount Side Tie
1x LHS Flush Mount Side Tie
Aluminium Package - covered A-frame, corner stays, guards, steps
1x LH Side Step
Heavy Duty Swing-Away Jockey Wheel
Spare Wheel mounted on front
Stow Away Hooks for Safety Chains
240V Power Inlet - with double power point and safety trip switch
Awning
Caravan Door

Standard - Outside (Rear)

4'7" Extended Height Tailgate, comes with Easylift Gas Strut Operation, 2x handles, adjustable latches, latch loops
Lift-up Barn Door above tailgate, with Easylift Gas Strut Operation
TempFlow Bracket on Barn Door for travelling with Barn Door ajar
LED Load Lighting on Barn Door
LED Trailer Lights (Brakes, Indicators, Parkers)

Standard - Outside (Underneath)

Rocker Roller Suspension for smooth ride
Sunraiser Wheel with Light Truck Tyres
Emergency Break Away Unit
59ltr Water Tank with 12V pump, external tap & filler point
Australian Kiln Dried Hardwood Timber Flooring for all horse area

DOWNLOAD BROCHURE

Popular Options

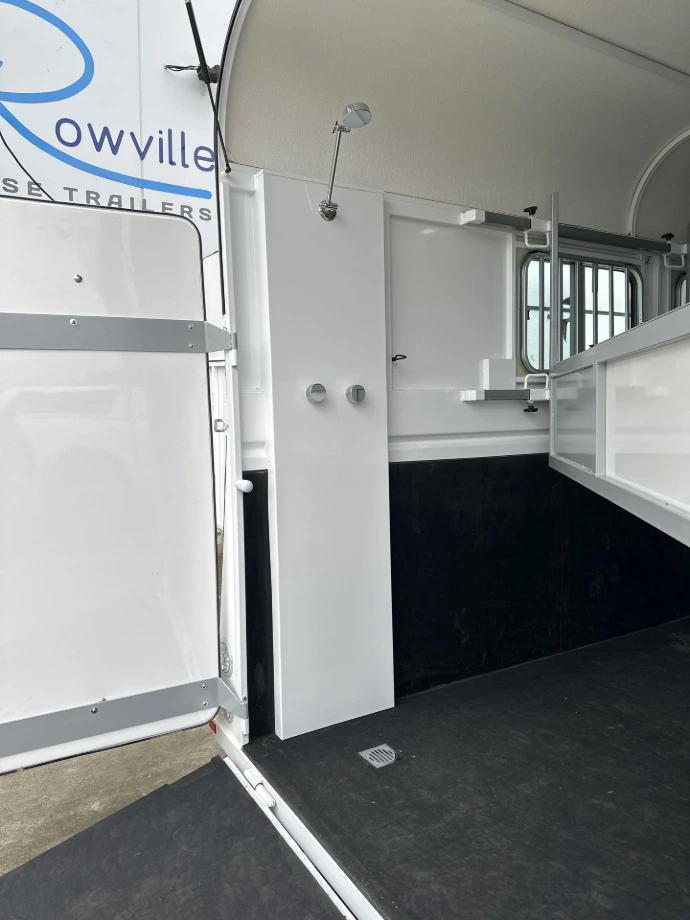

'Cowboy' Shower

Alloy Wheels

12V Electric Jockey Wheel

Air Conditioner

*All prices listed include GST and are subject to change without notice. Any deviation from the standard model specification or description is considered a variation and may incur additional costs.
